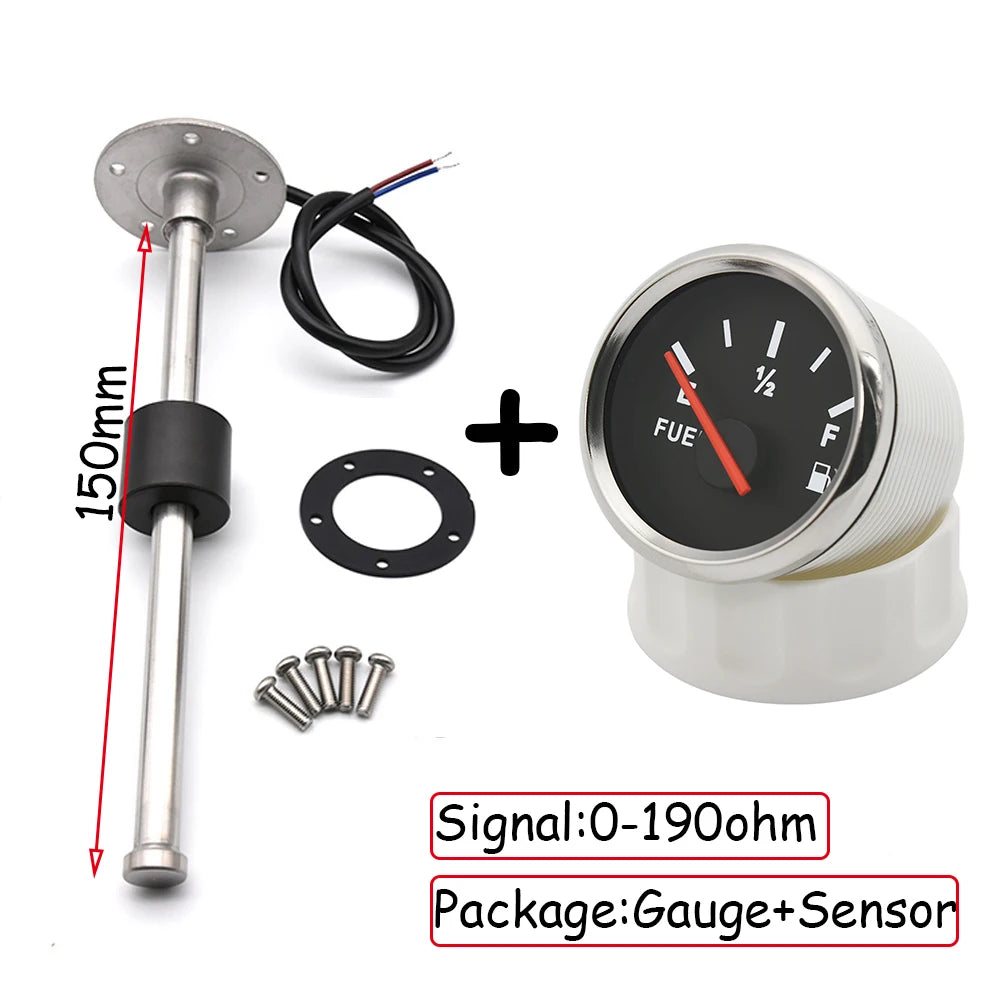

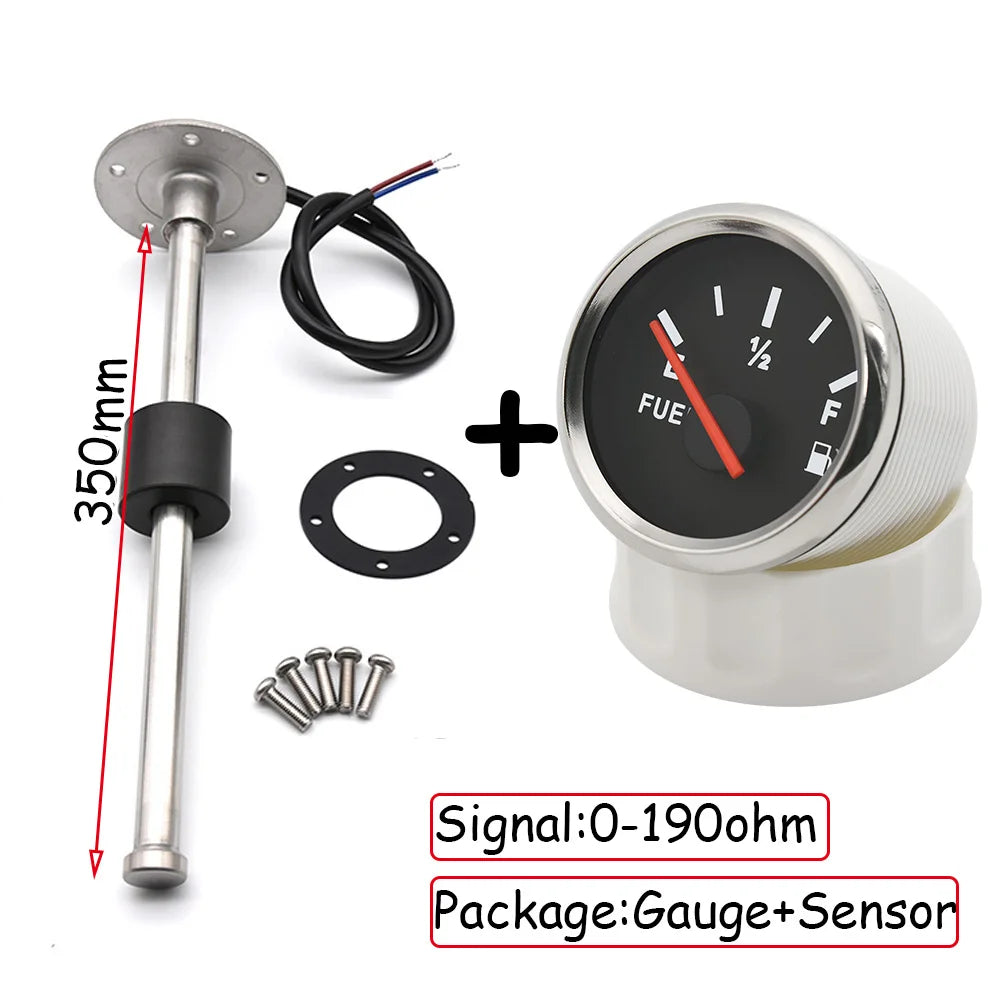

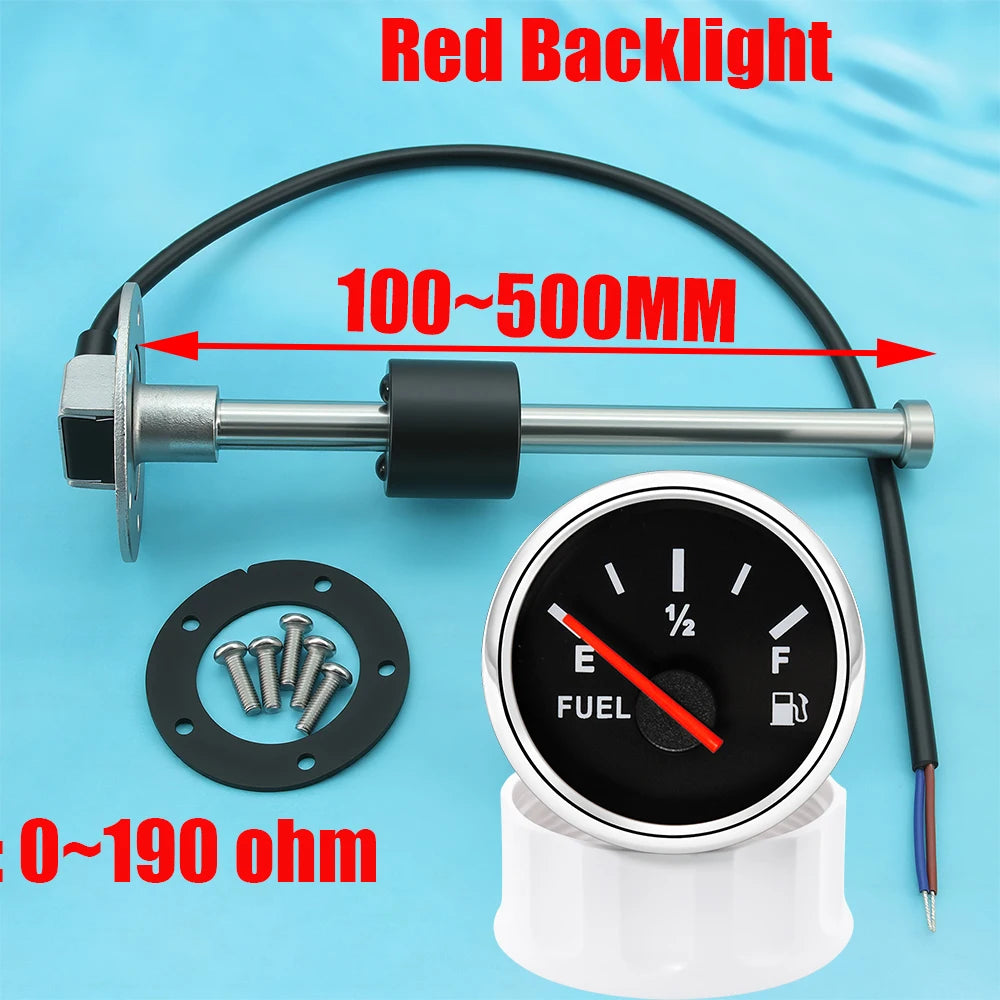

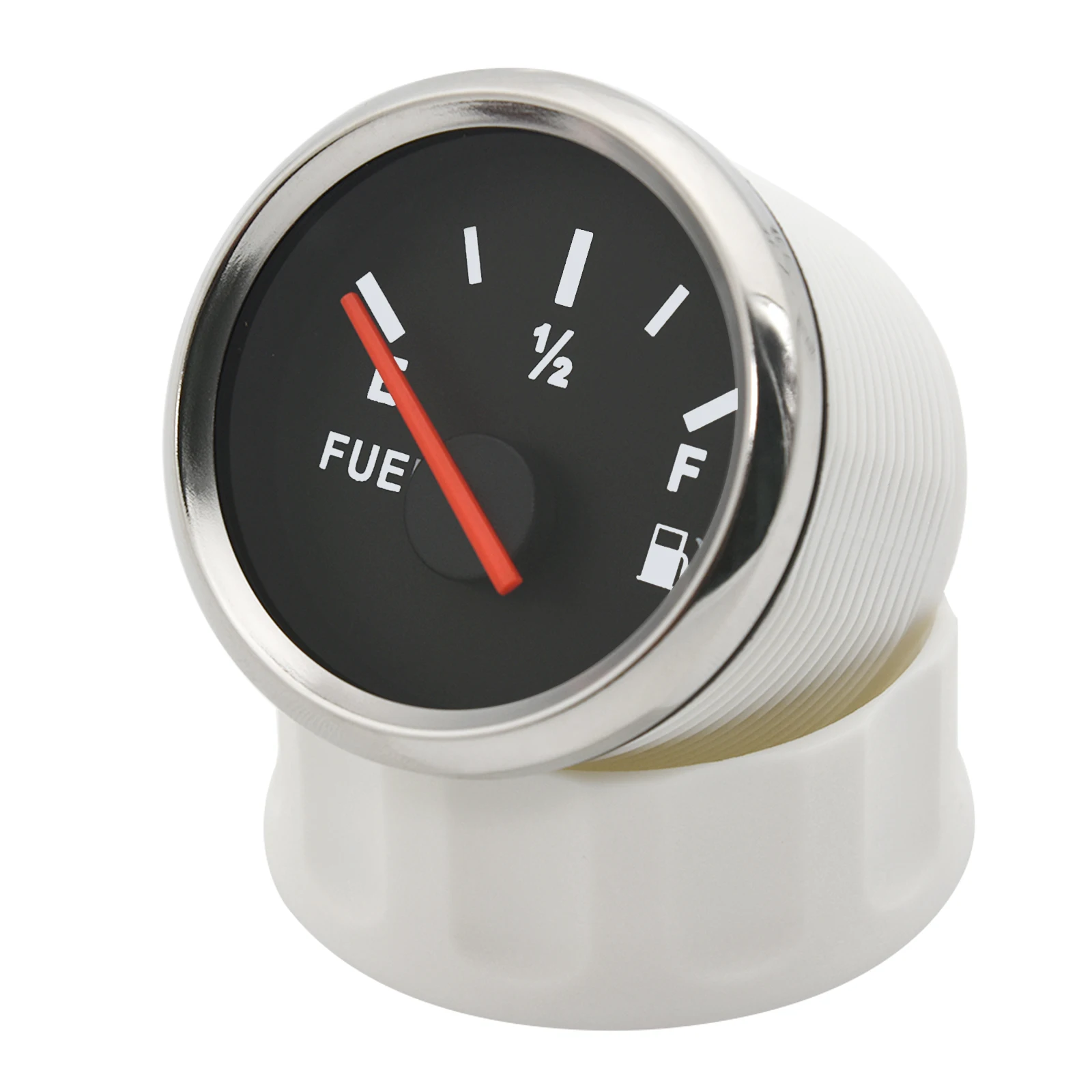

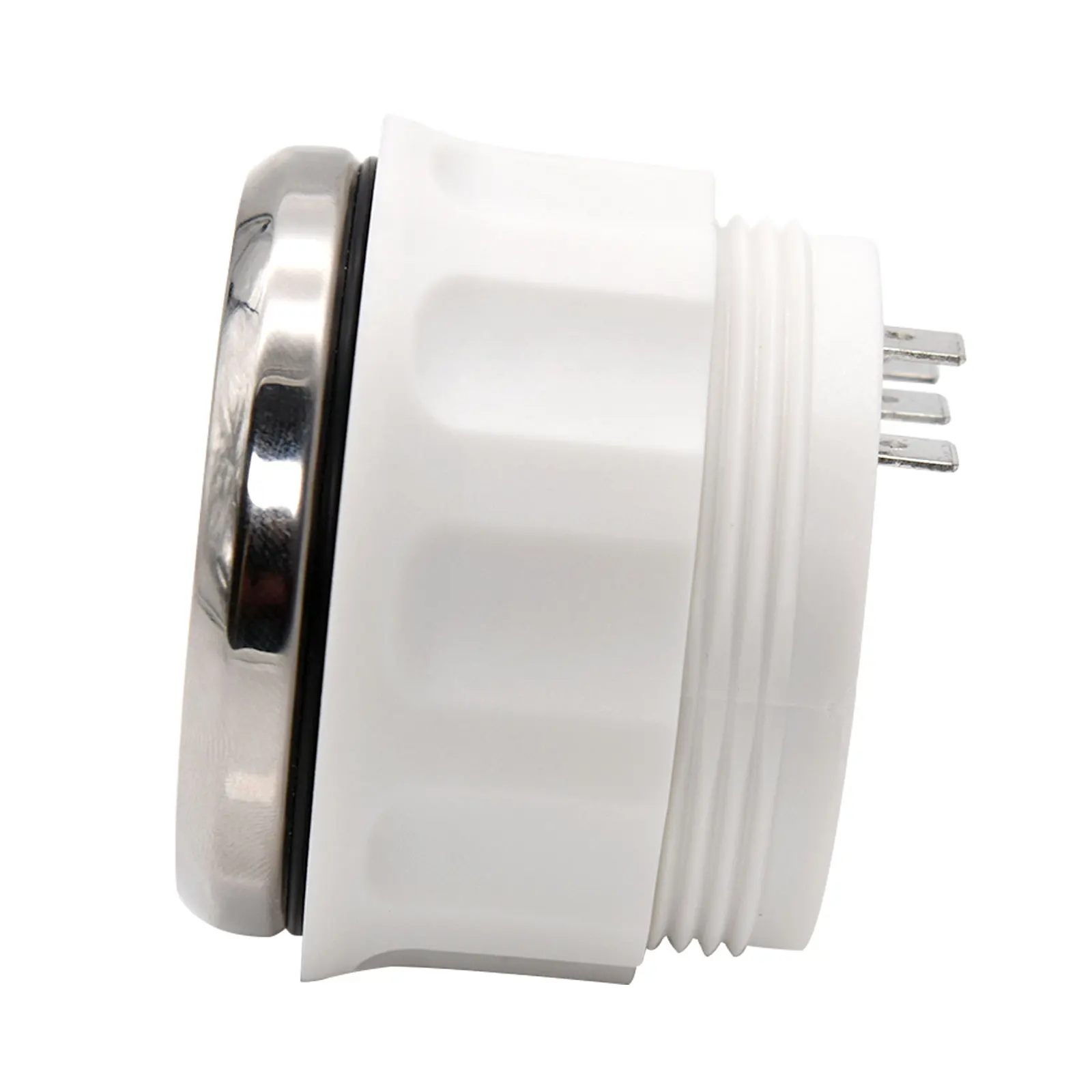

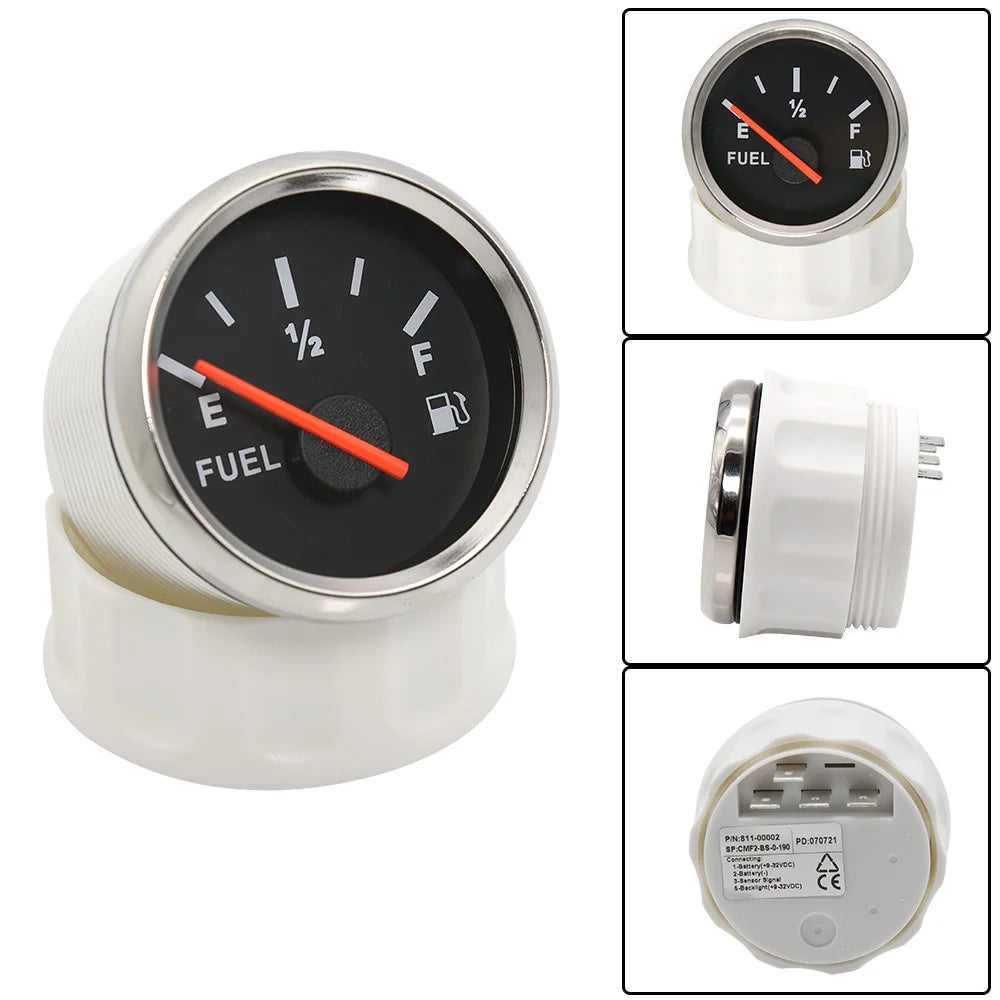

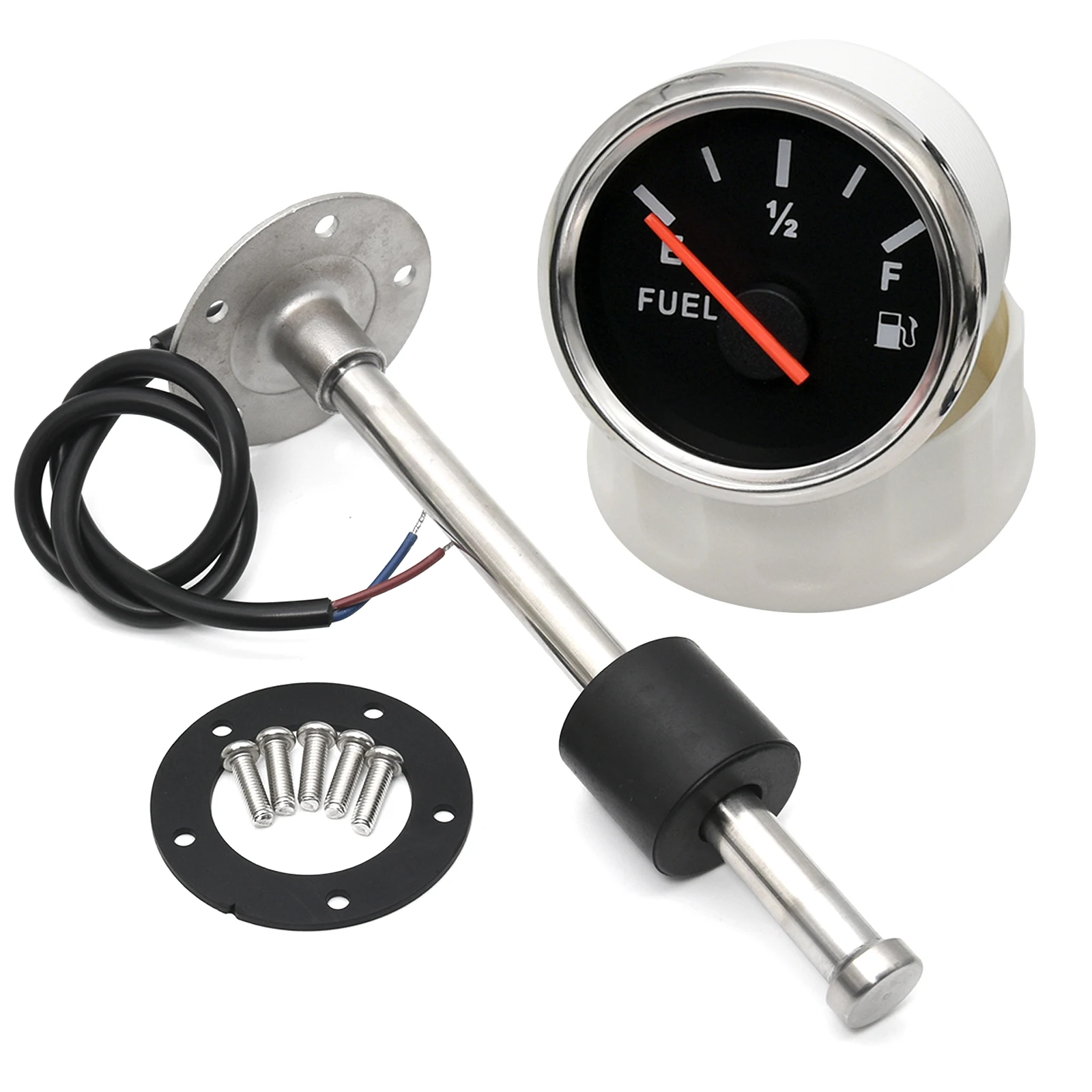

Red Light 2" 52mm Fuel Level Gauge 100-500MM Stainless Steel Fuel Level Sensor 0~190 ohm For Auto Car Boat Yacht Marine 12V 24V
Regular price
$43.67
SPECIFICATIONS
Brand Name: NONE
Choice: yes
Country/Region of Manufacture: CN
High-concerned chemical: none
Interchange Part Number: Fuel Level Gauge
Item Height: 52mm
Item Length: 52mm
Item Weight: 110g
Item Width: 52mm
Manufacturer Part Number: Fuel Level Meter
Material: Plastic, Rubber,Stainless
OEM NO.: Car Pointer Fuel Gauge
Origin: Mainland China
Other Part Number: Fuel Level Gauge
Placement on Vehicle: Front
Special Features: 0~190ohm
Gauge Feature:
- Backlight: Red LED

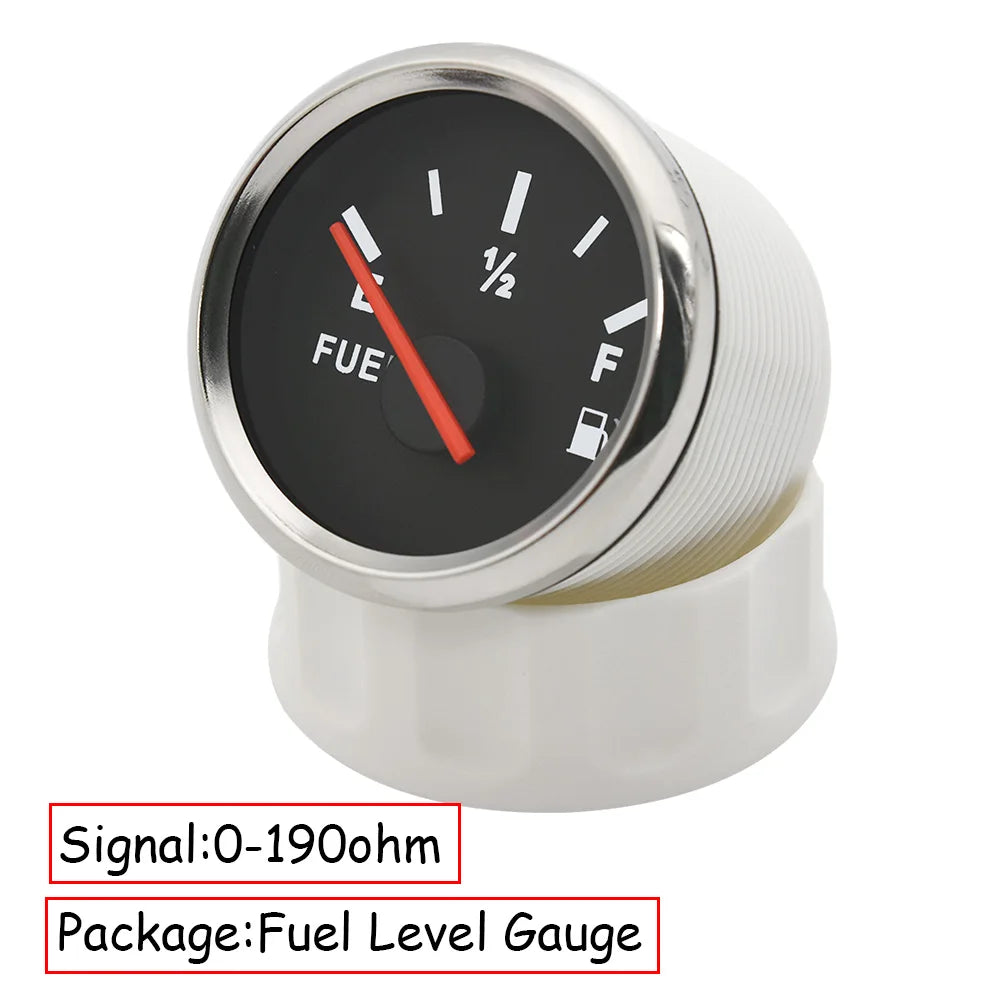

- Signal: 0-190 ohm
- Range: Empty-1/2-Full
- Working Voltage: 9-32V
- Fitment: for Universal Car Boat Marine Motor etc
- Fit for Gasoline/Diesel Engine
- Operating Voltage：9~32VDC，
- Operating current：≤60mA;
- Operating temperature：-30~+75℃
- Storage temperature：-40~+85℃。

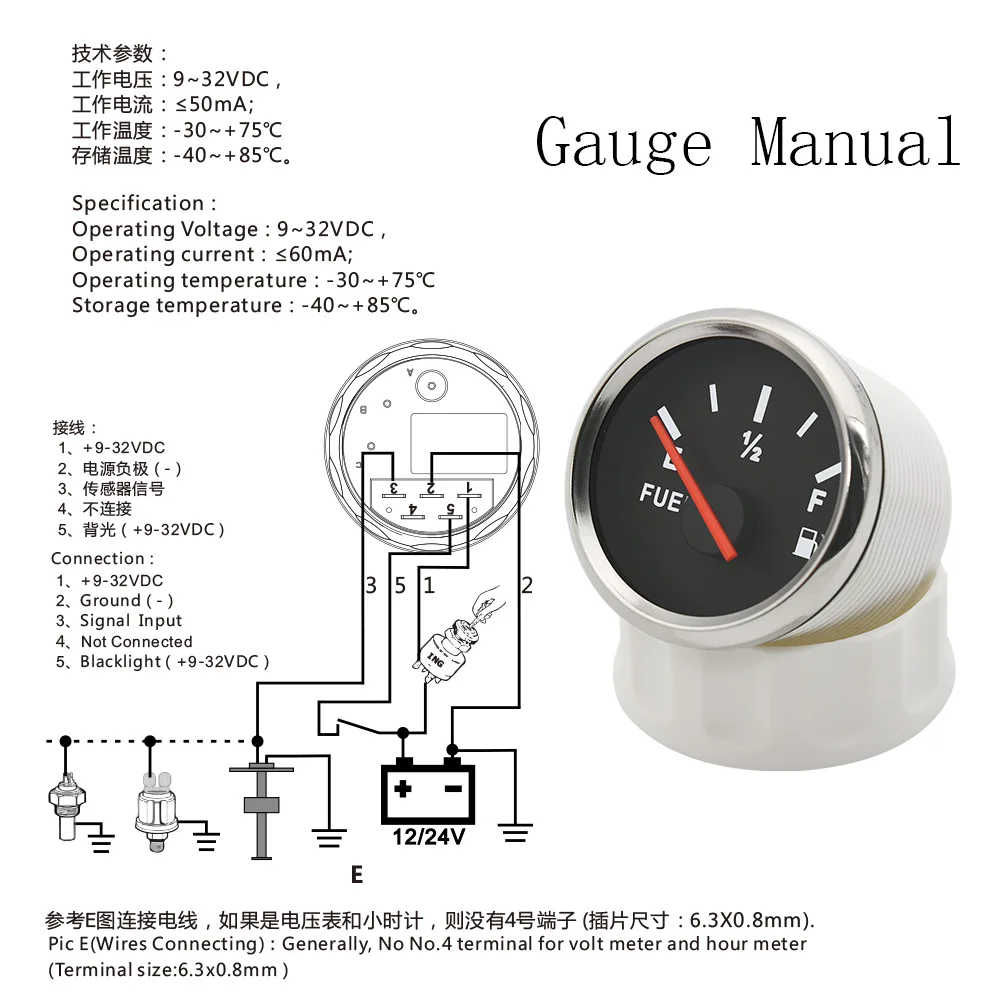

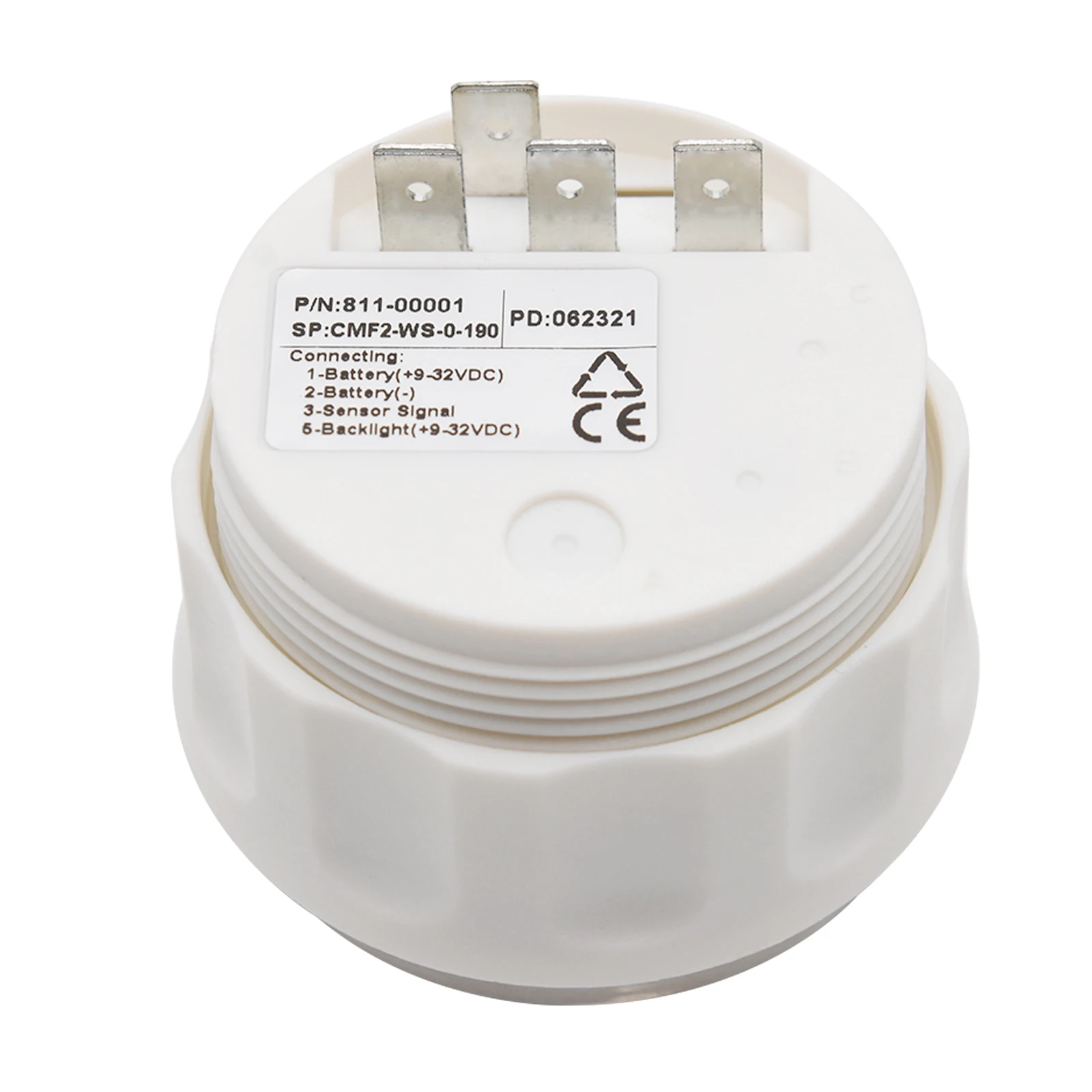

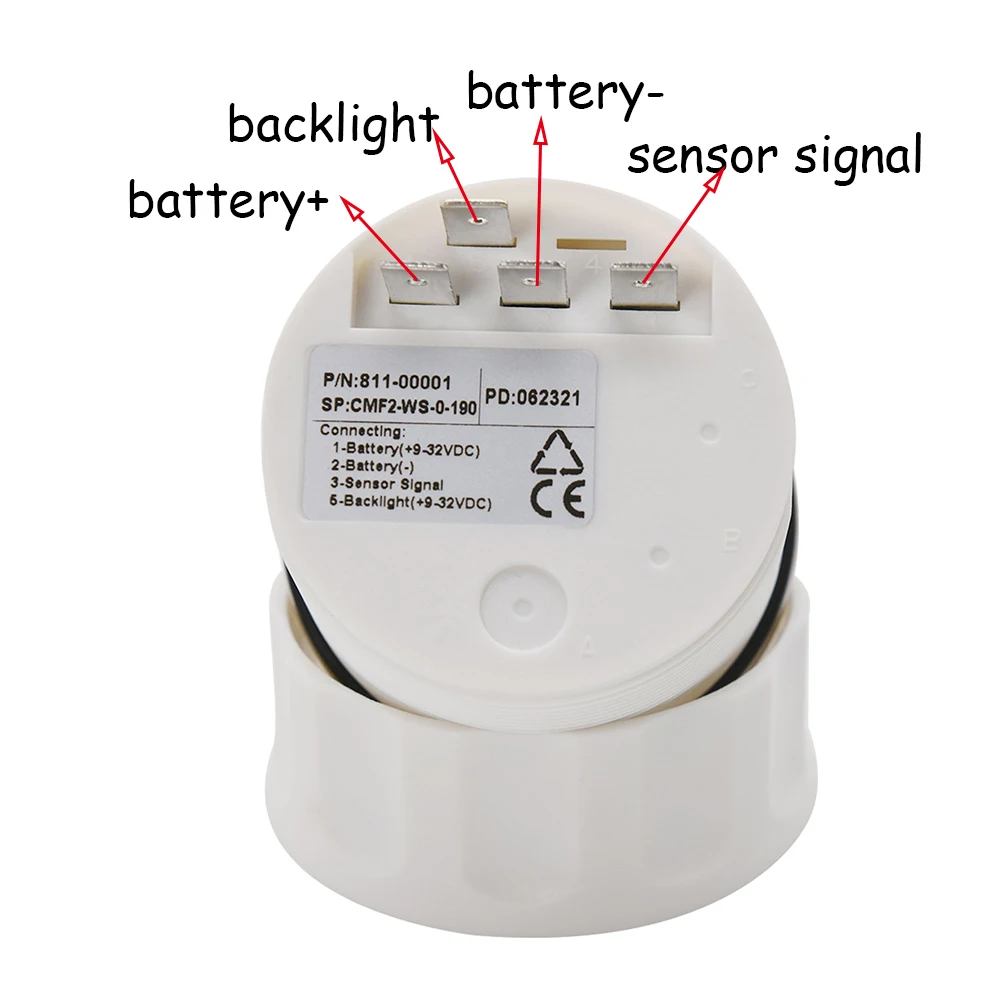

Gauge Connection
1、+9-32VDC
2、Ground（-）
3、Signal Input
4、Not Connected
5、Blacklight（+9-32VDC）-40~+85℃。

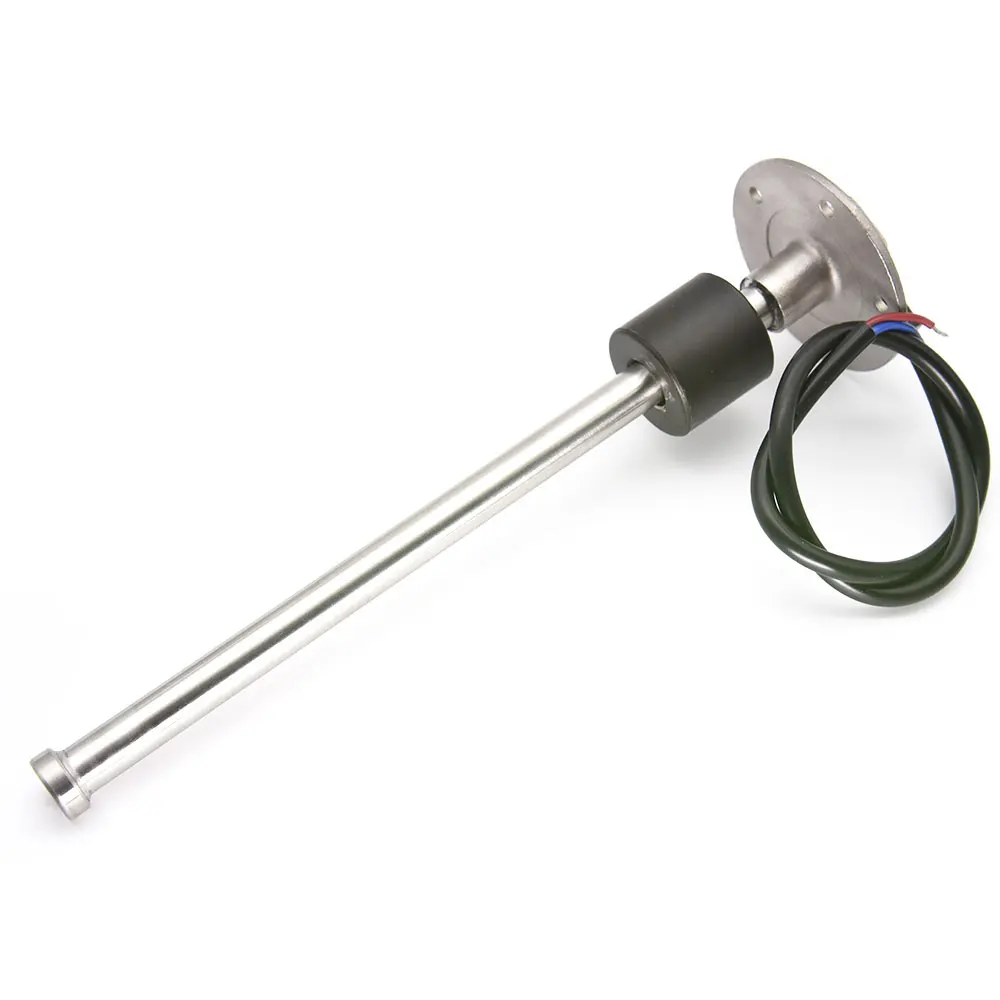

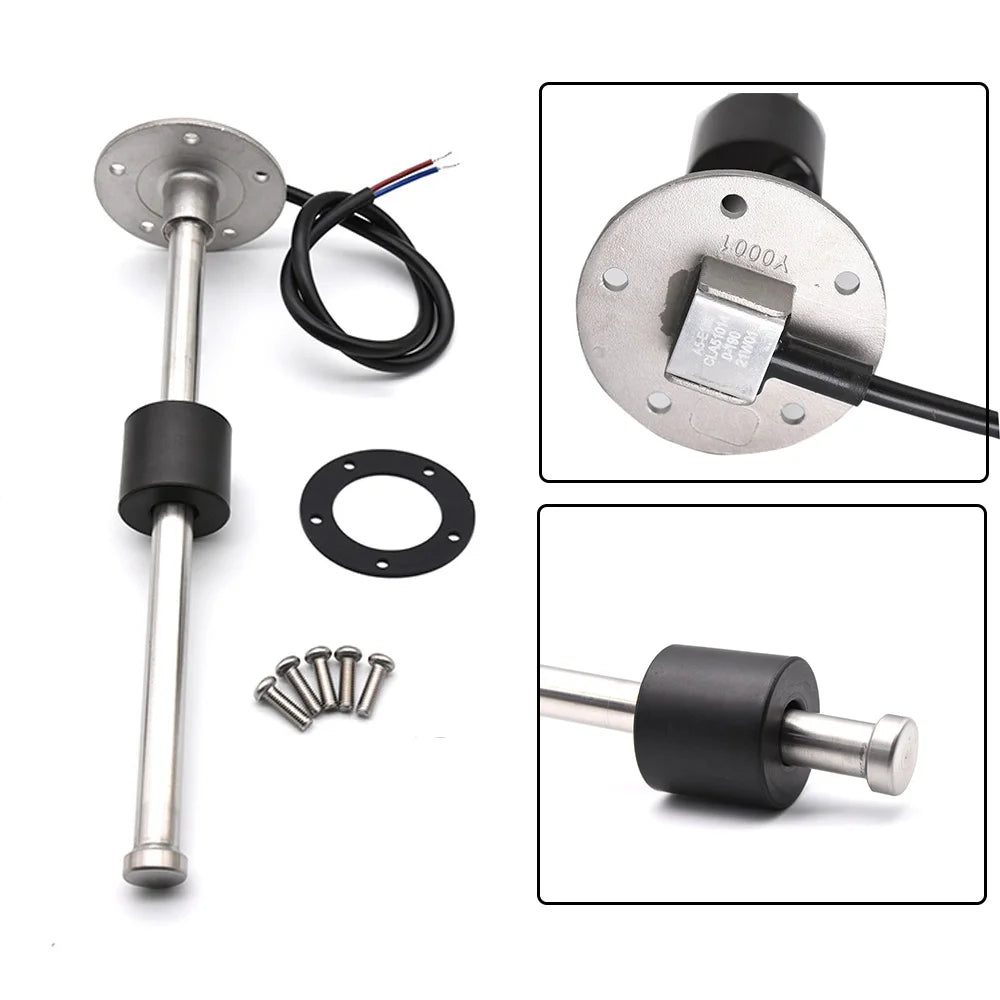

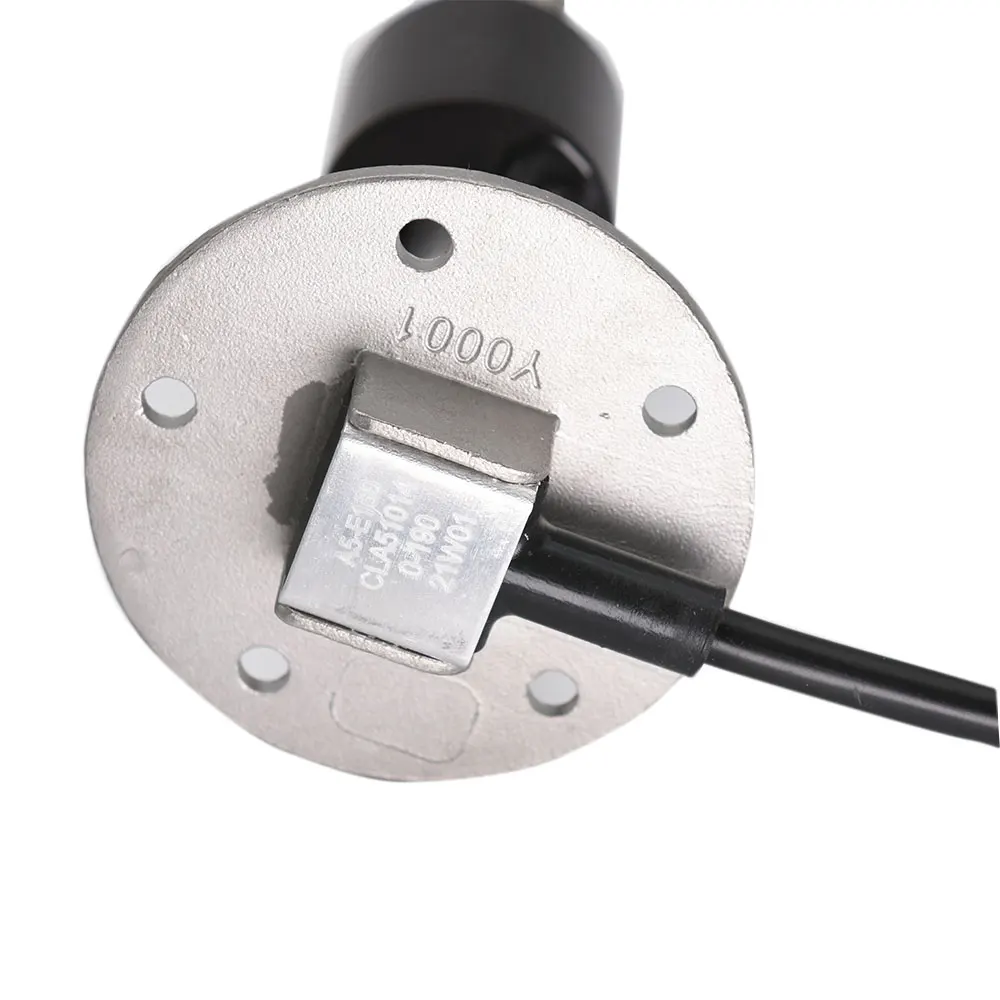

Sensor Feature:
- Material: 304 Stainless Steel
-Assembly: 5 holes
-Mounting: 5 pieces of M5 screws and 2 mm thick gasket
-Operating temperatures: - 40 to 85 degree
-Protection rank: IP67
-Level Sensor Support : fuel Level Gauge
-Signal: 0-190 ohm
- When the oil / water level is empty , there will be a space of 3-21mm between the sensor float and the bottom of the sensor. This is a safe distance, and the sensor can work normally,Thank you~
- When the oil / water level is full, there will be a space of 3-15mm between the sensor float and the top of the sensor. This is a safe distance, and the sensor can work normally, Thank you

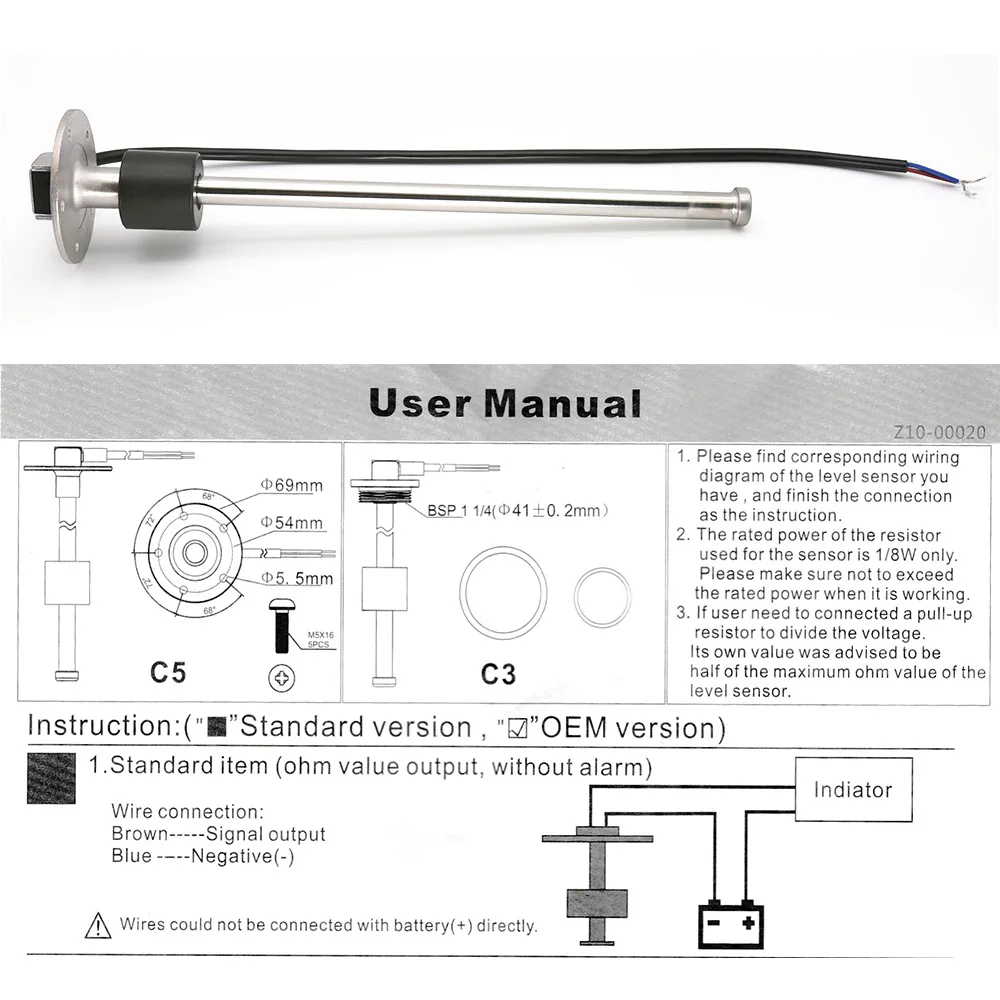

Sensor Conection:
- Brown line Connect to the Signal Output
- Blue line Connect to the Negative(-)
