Digital 2"52mm Air Fuel Ratio Gauge AFR Display Narrowband O2 Oxygen Sensor 0258006028 Smoked Lens Car Gauge for Petrol Car 12V
Regular price
$59.10
SPECIFICATIONS
Brand Name: NONE
Choice: yes
Country/Region of Manufacture: China
High-concerned chemical: none
Interchange Part Number: Narrowband O2 Oxygen Sensor
Item Height: 52mm
Item Length: 52mm
Item Weight: 400g
Item Width: 52mm
Manufacturer Part Number: 2 Inch Gauges
Material: Plastic Shell
OEM NO.: AFR Meter 52MM
Origin: Mainland China
Placement on Vehicle: Air Fuel Ratio
Special Features: Car Gauge

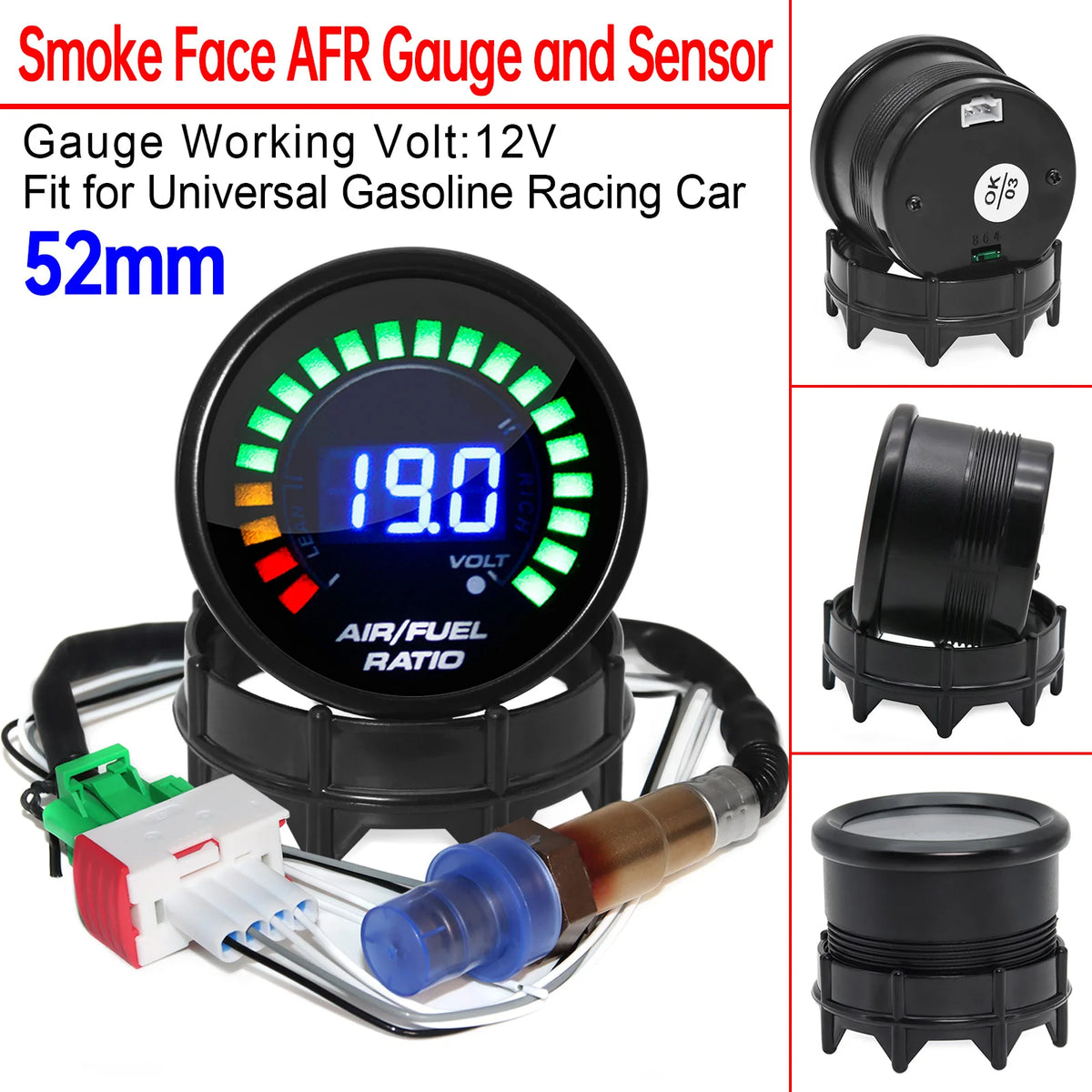

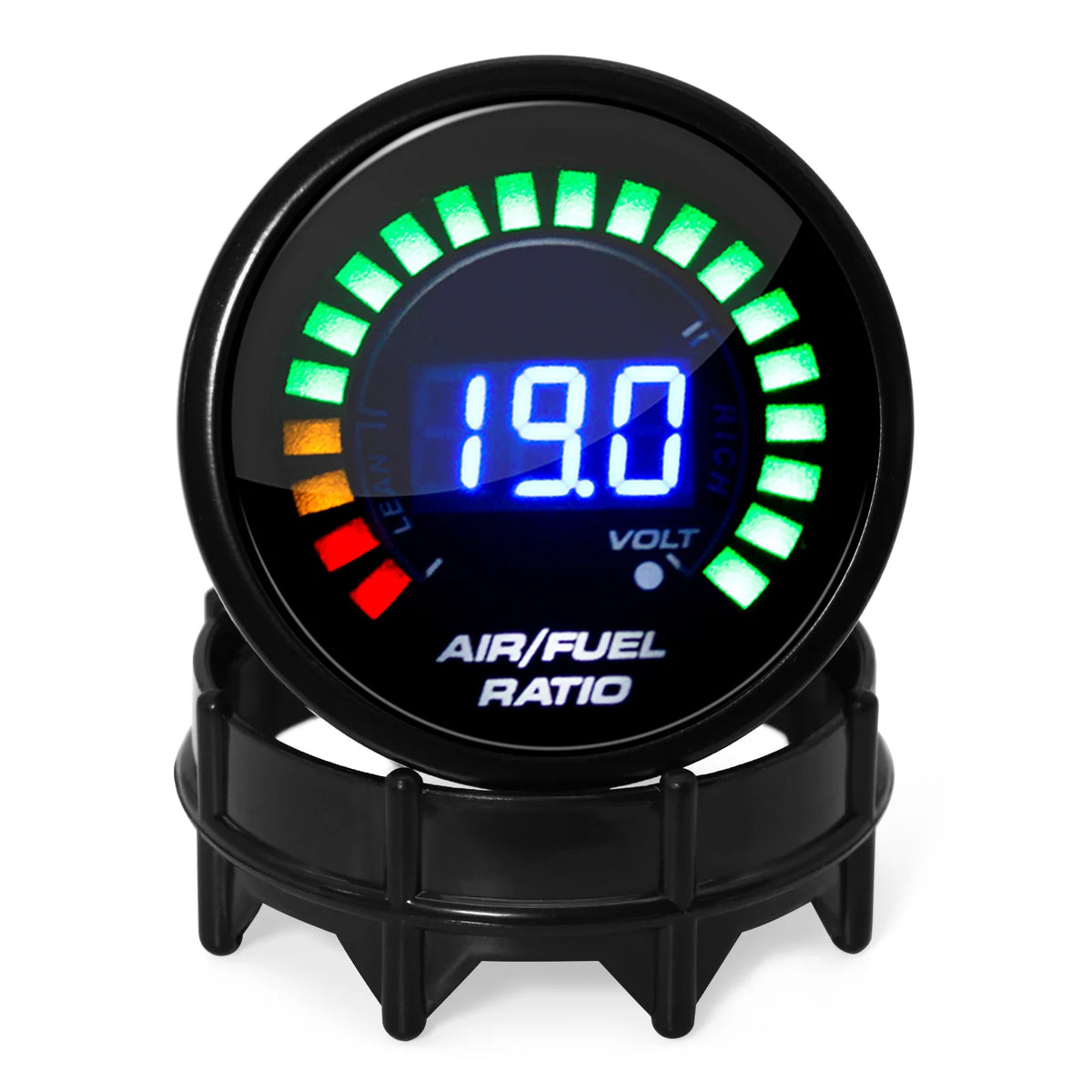

52mm Air Fuel Ratio Gauge LED Digital Display With Narrowband O2 Oxygen Sensor Car Gauge for 12V Car 0258006028 Racing Gauge
Attention: the sensor is Narrrowband Oxygen Sensor and it should be working on 0-1V , please check your car whether fit for it or not before making order !!!!!!
thanks!

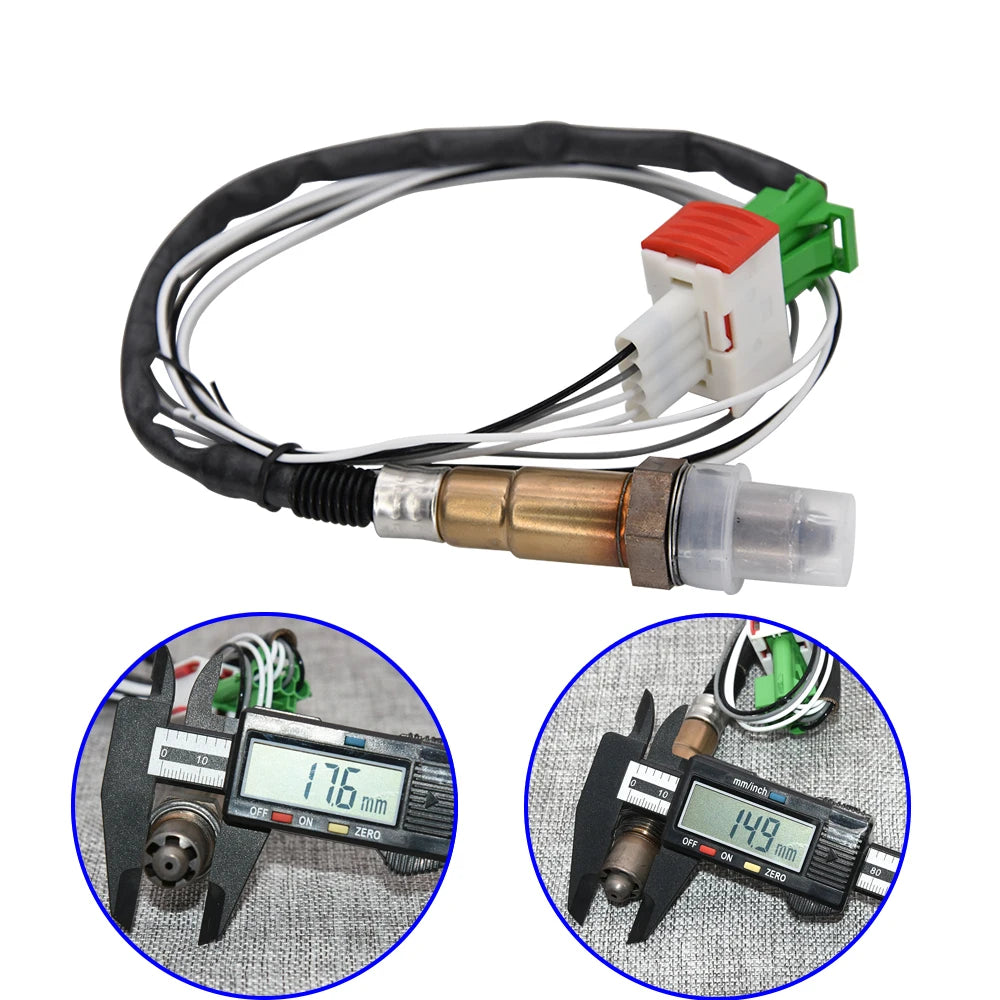

Oxygen Sensor Specification:
OEM:0258006028
Working Voltage: DC12V
Signal Line Voltage: 0-1V
Spiral: M18*1.5
Use Wrench: 22mm
Output Voltage: Maximum value ≥900mv/ minimum value ≤50mv.
Response time: (600mV-300mV) ≤100ms.
Response time: (300mV -600mV) ≤100ms.
Starting time: ≤10s
Heating resistance: 8.5~9.5Ω
Internal resistance: 200~300Ω
fit For Geely Emgrand CITROEN FIAT PEUGEOT

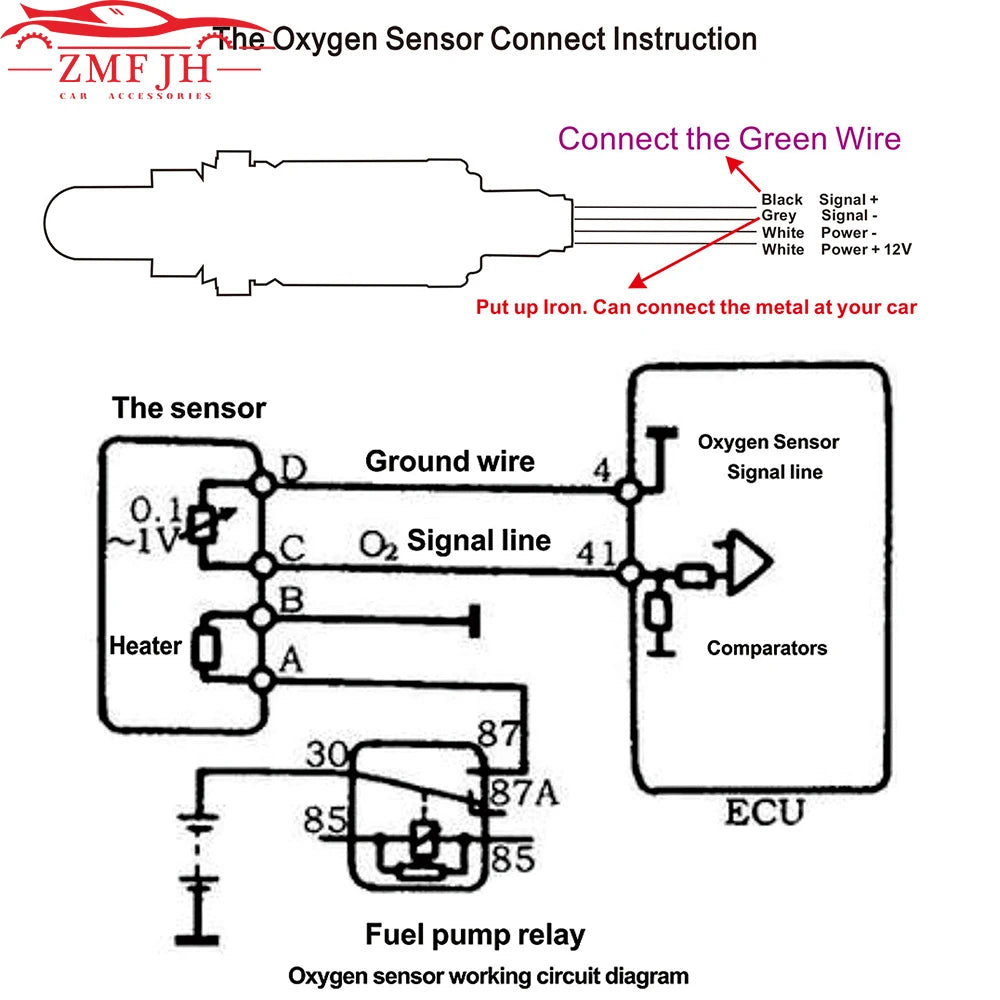

Connection:
The white line is at heater ab
Black line signal line C, gray line signal ground D
The green wire of the instrument is connected with the black wire of the sensor. The gray line is connected to the negative pole of the battery.
One white wire connect with the car shell or battery negative pole.
Another white wire connect to the ACC line of ignition switch
The white line is the heater and does not distinguish between positive and negative electrodes

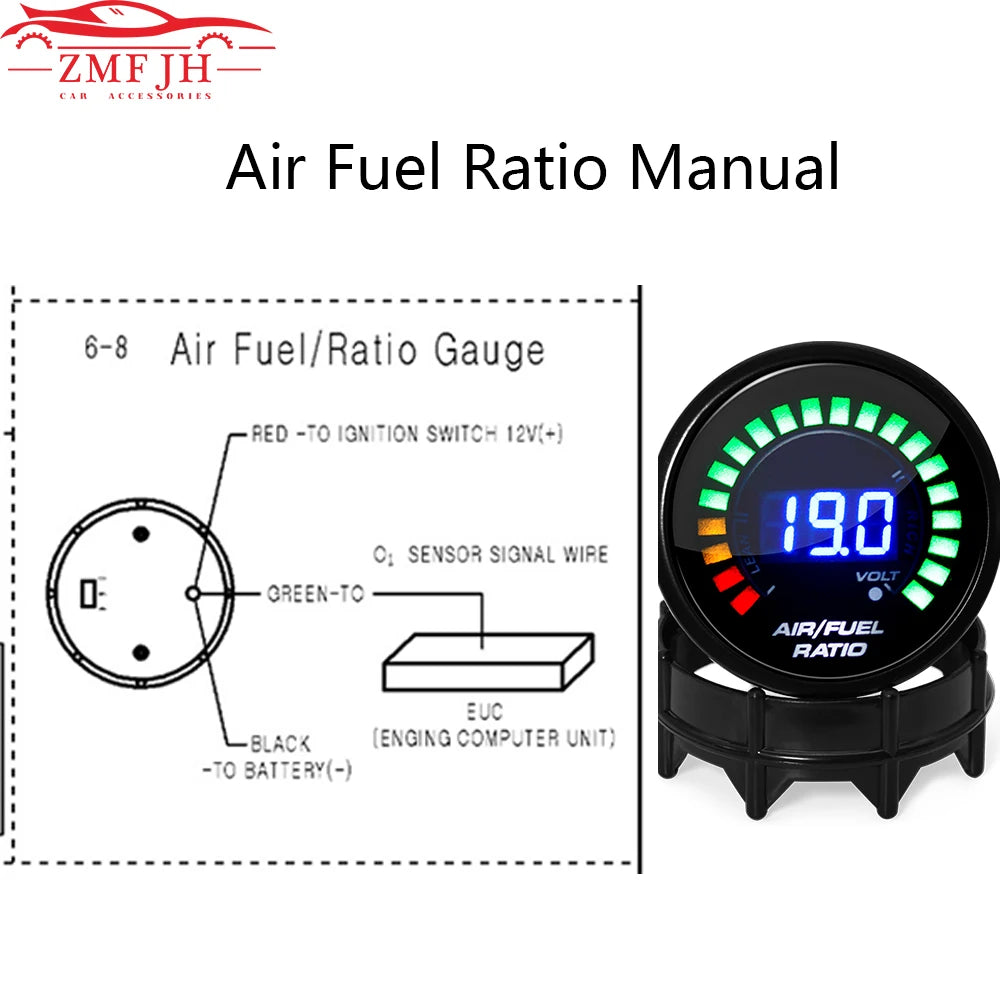

About the air fuel gauge, please see the installation instructions.
Attention: If you need the sensor and the gauge , please choose the item of sensor and gauge together.
Package:

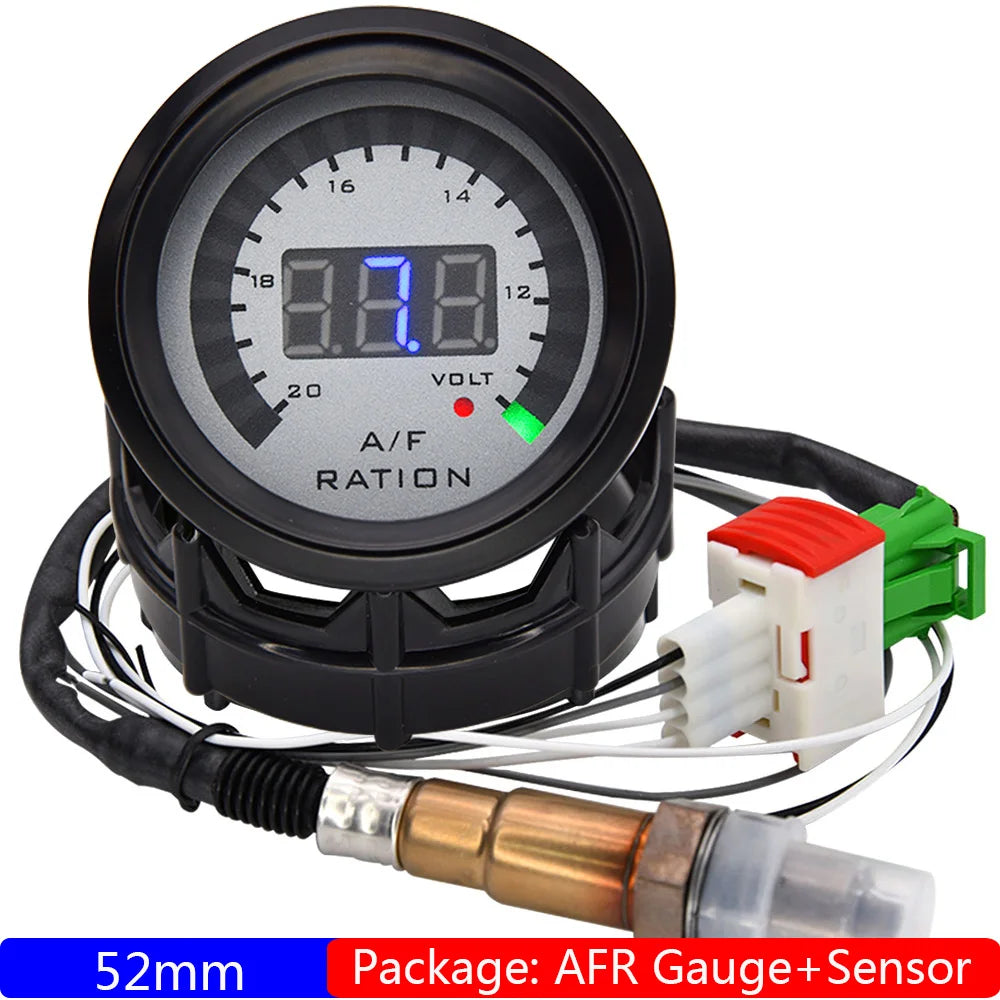

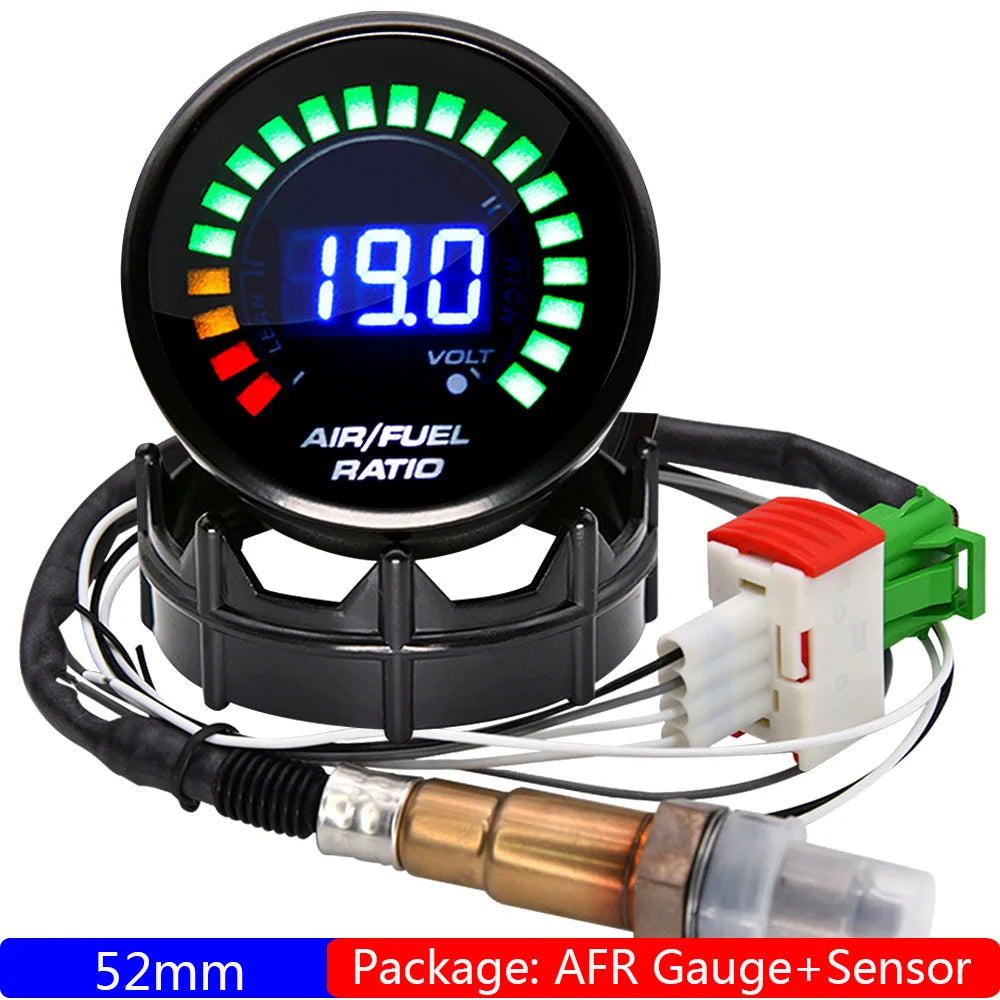

1* Air Fuel AFR Gauge
1* Narrowband Oxygen Sensor
1* English Manual(Only teach how to install the gauge,but do not teach how to install the O2 sensor,thanks)
Note:
1.Highly Recommended professional installation,do not teach you how to connect the O2 Oxygen sensor.
2.This kit is not a universal kit, please confirm whether this oxygen sensor is suitable for your car before buying, thank you!
