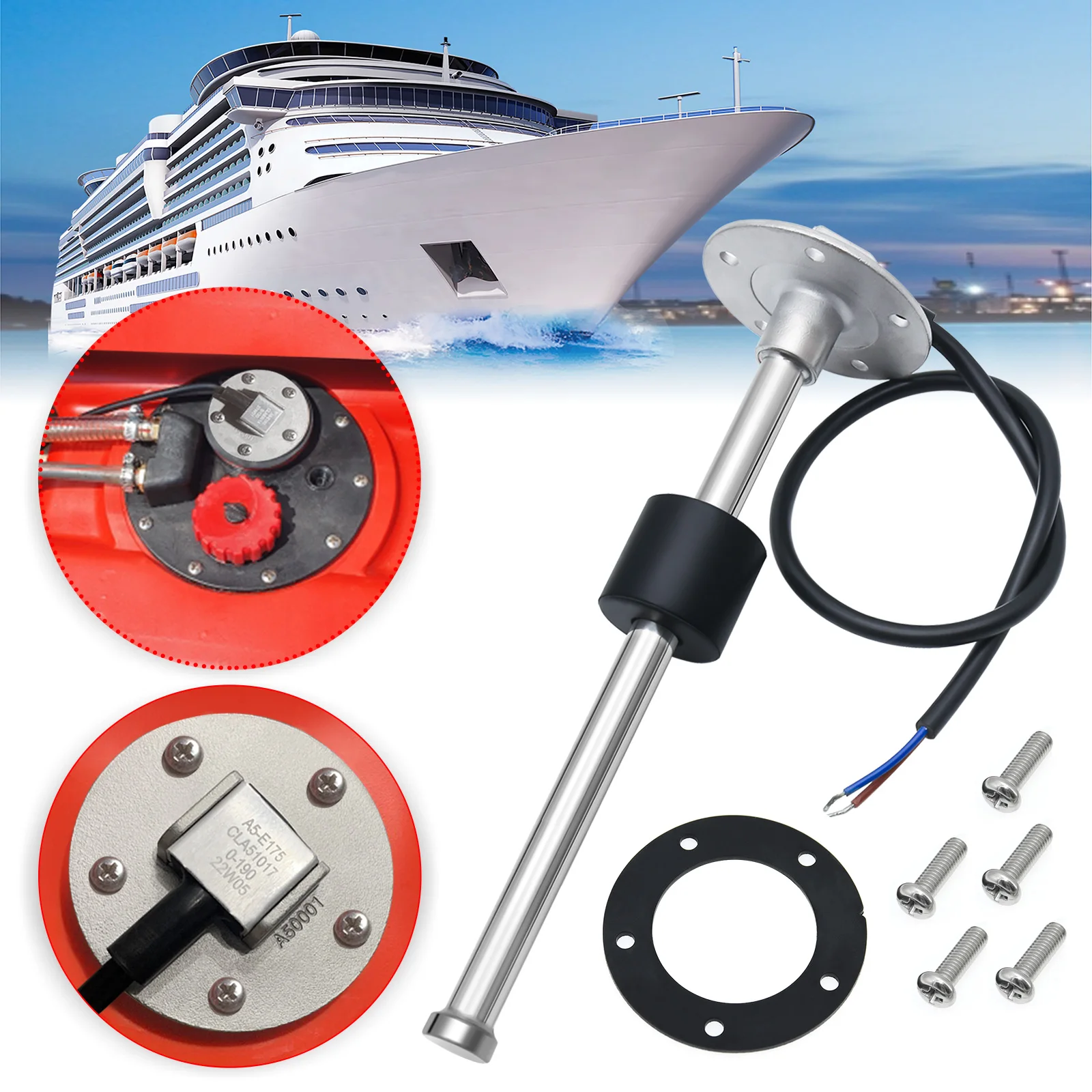

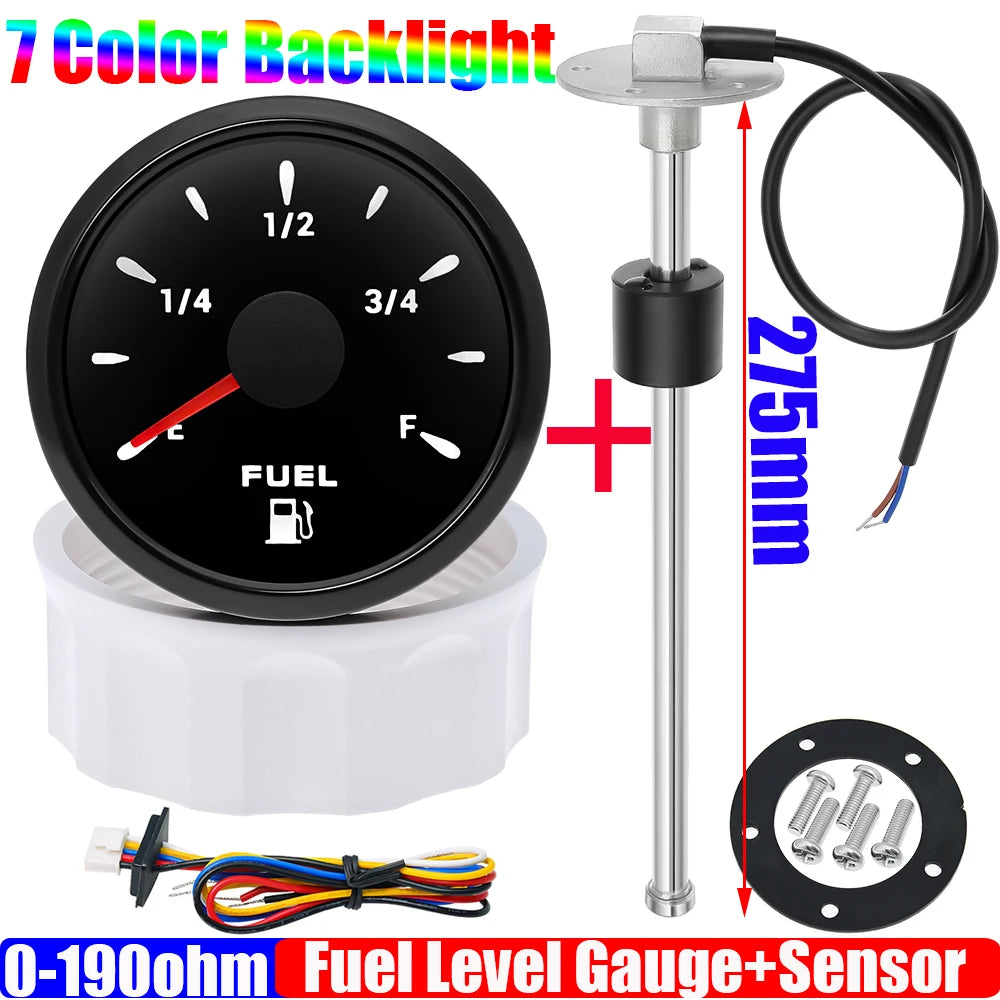

0-190 ohm Fuel Float Sensor + 52mm Fuel Level Gauge 7 Color Light Waterproof IP67 Oil Tank Meter Indicator Car Yacht 12V 24V
Regular price
$43.97
SPECIFICATIONS
Brand Name: RYSJM
Choice: yes
Country/Region of Manufacture: China
High-concerned chemical: none
Interchange Part Number: Fuel Level Sensor
Item Height: 52mm
Item Length: 52mm
Item Weight: 120g
Item Width: 52mm
Manufacturer Part Number: Auto Car Gauge
Material: Plastic
OEM NO.: 0-190 ohm
Origin: Mainland China
Other Part Number: Fuel Level Gauge
Placement on Vehicle: front
Special Features: 7 Color LED

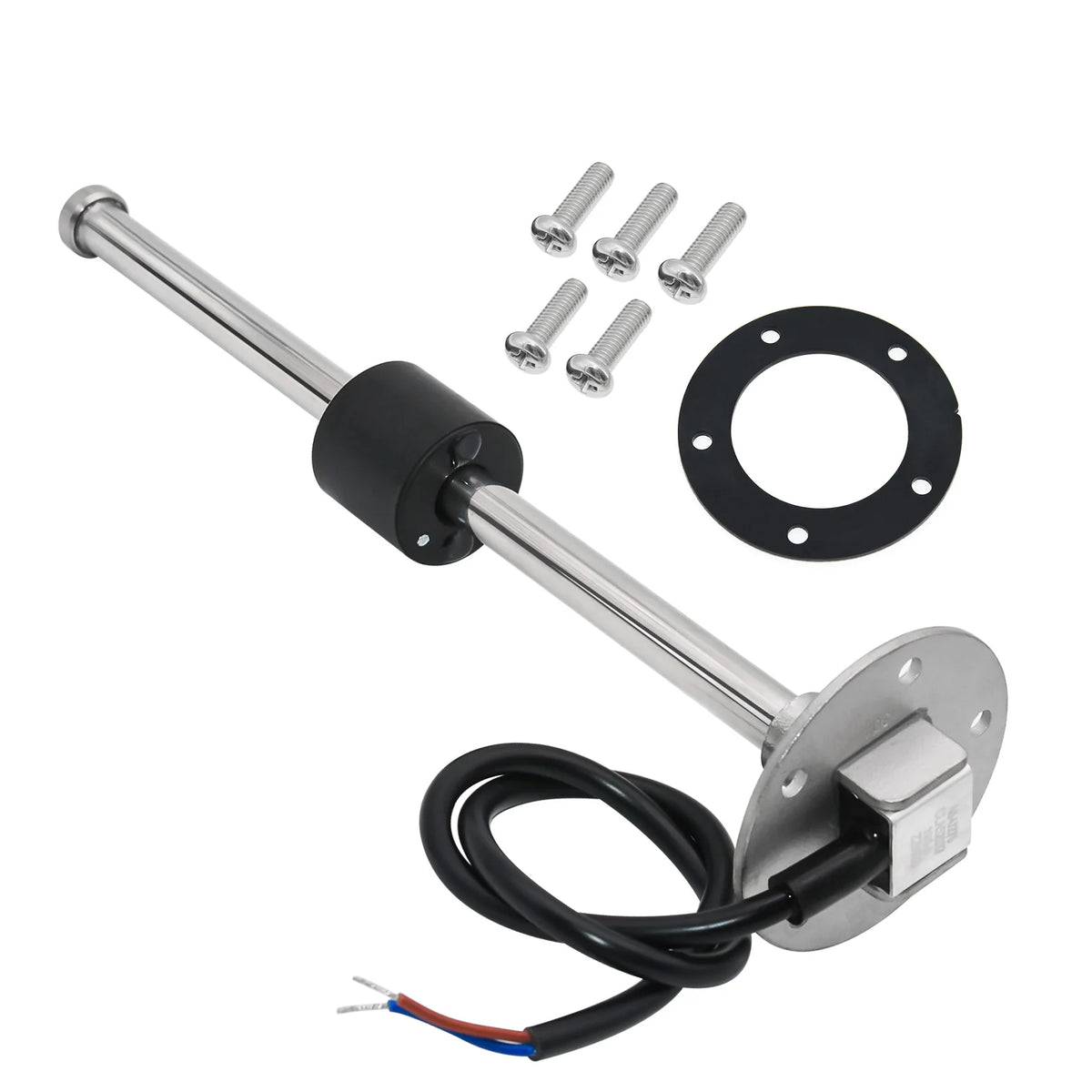

Sensor
- Protection ank: IP67

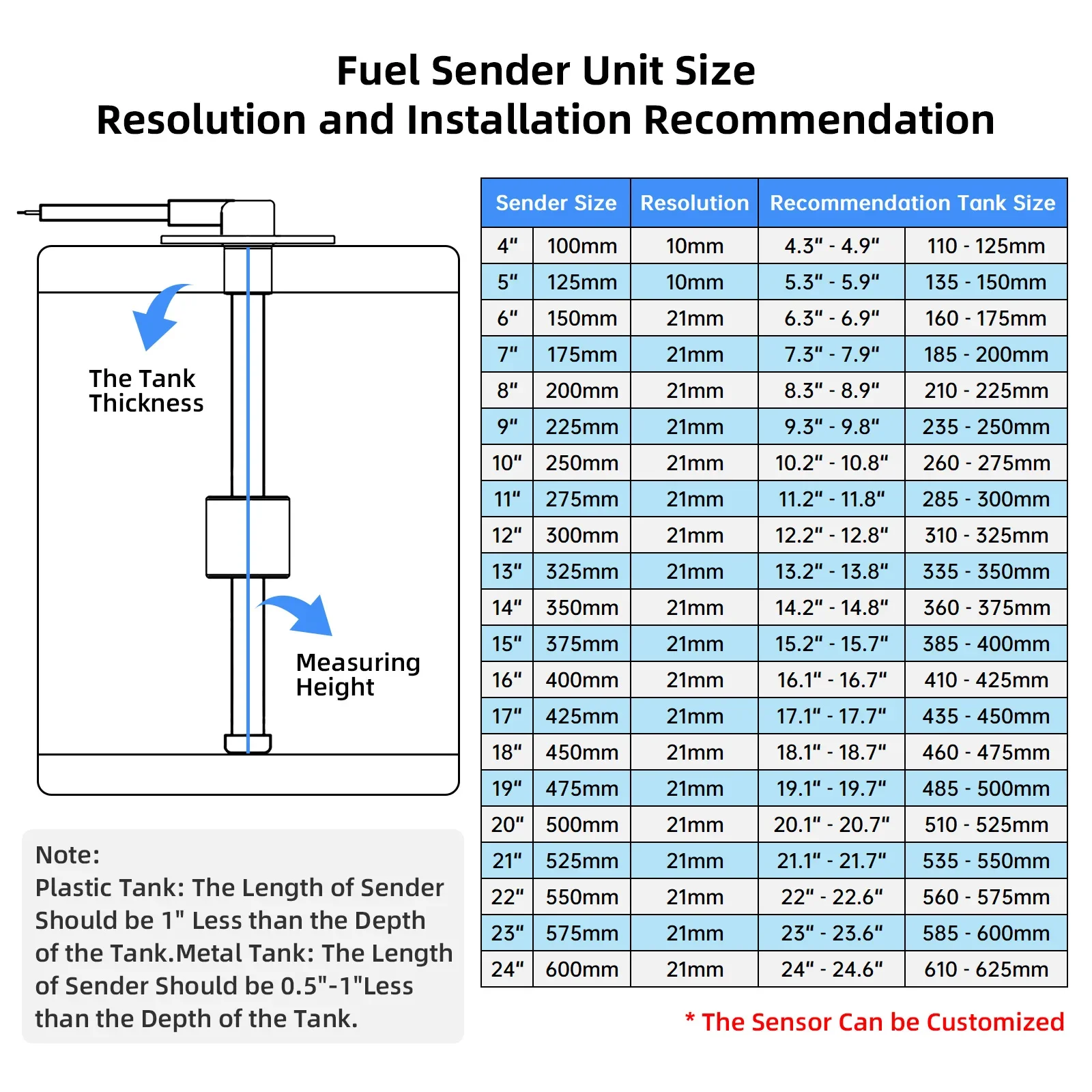

- Resolution range: 21 mm
- Assembly: SAE standard 5 holes
- Rated current for alarm switch: 500mA
- Operating temperatures: - 40 to 85 Celsius
- Mounting: 5 pieces of M5 screws and 2 mm thick gasket
- Output signal: 0~190 ohm (Standard European)
- Fitment: for Gasoline, diesel, methanol fuel, ethanol fuel

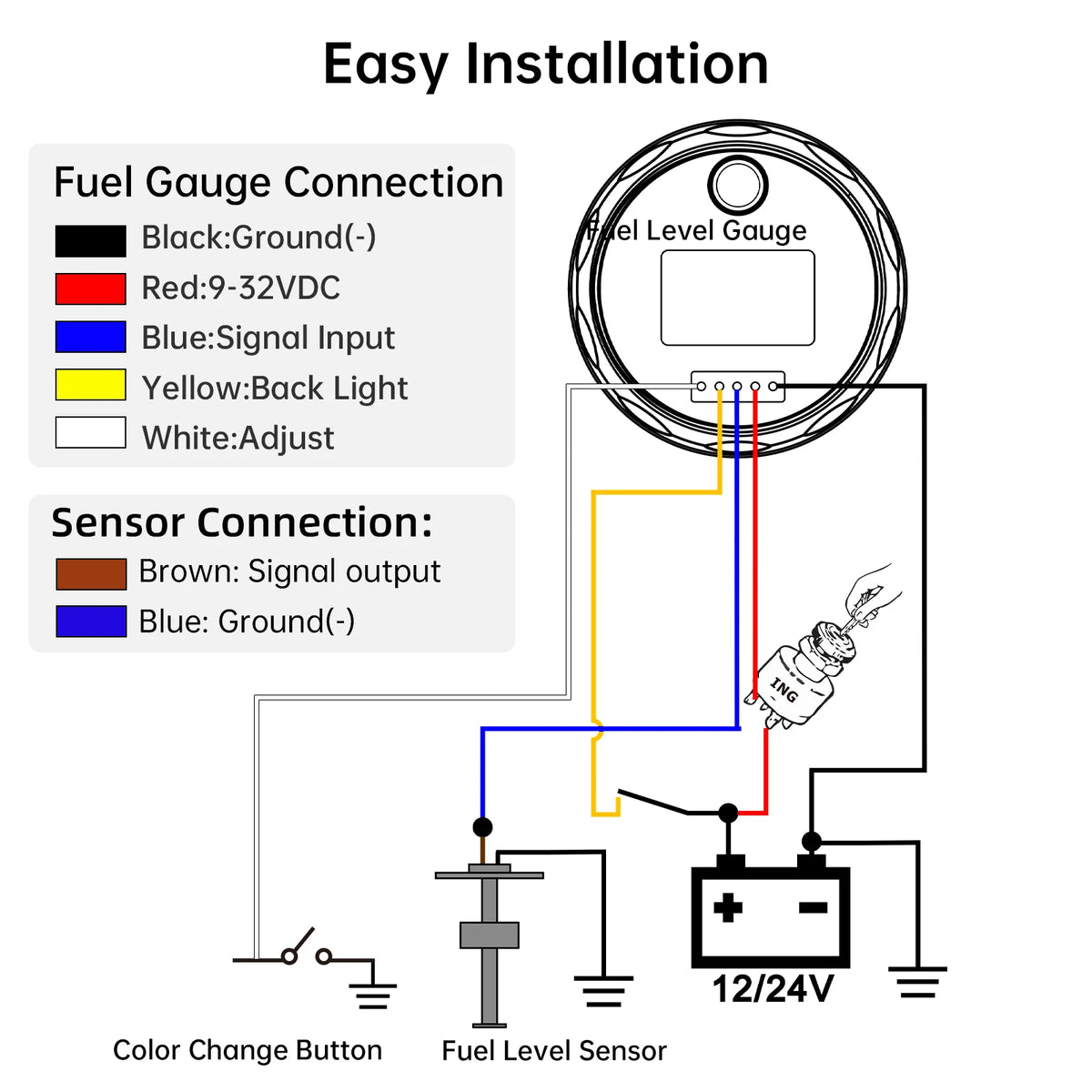

Sensor Connection:
Blue wire: connect the ground wire
Brown wire: connect the gauge signal wire
☆Empty oil level 0 ohm
★Full oil level 190 ohm
- When the oil / water level is empty , there will be a space of 3-21mm between the sensor float and the bottom of the sensor. This is a safe distance, and the sensor can work normally,Thank you~
Gauge Feature:
- Indicating Range:E-1/4-1/2-3/4-F
- Name: 52mm Fuel Level Gauge

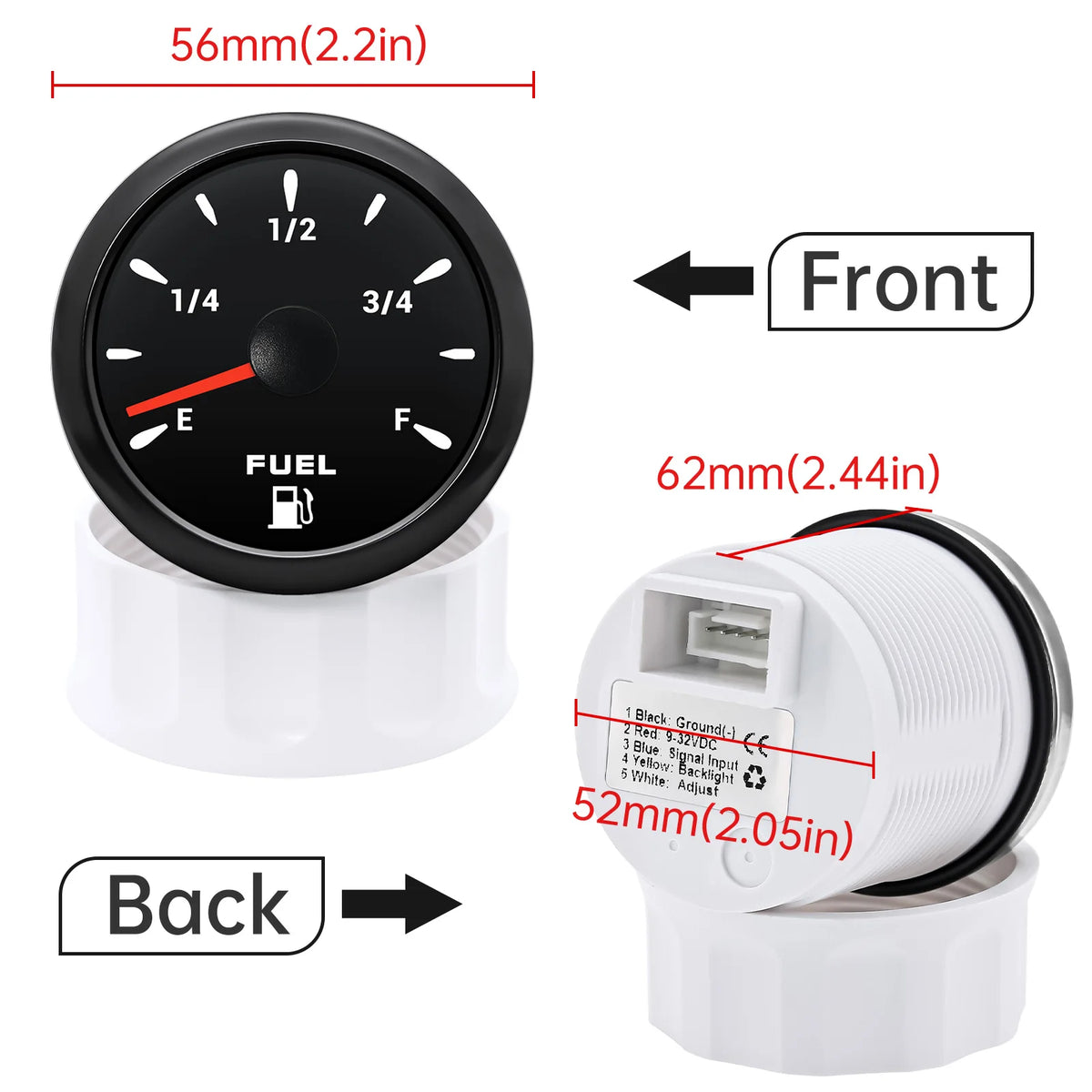

- Fixing dimension: 52mm or 2-1/16"
- Operating Voltage: 9-32V /fit 12V-24V
- Materials: Plastic
- Input signal:0~190ohm (European standard),

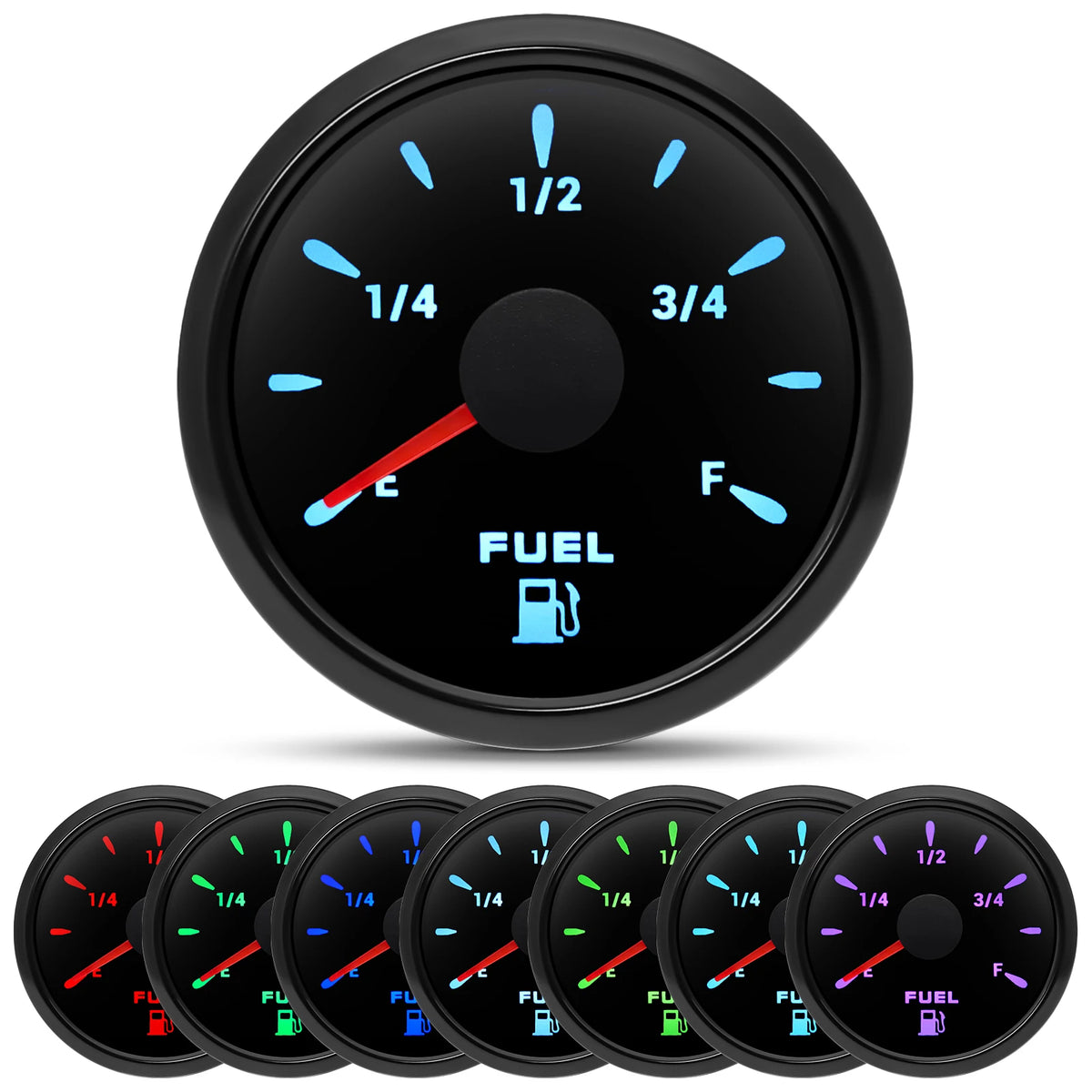

-Backlight Color: 7 Color Light
- Waterproof IP67
